ACDSN-AC-KS

This is the list of functions needed to control ACDSN through an AD.

The data are stored on an AD or a Database and are accessed via a Web Service, using RPC.

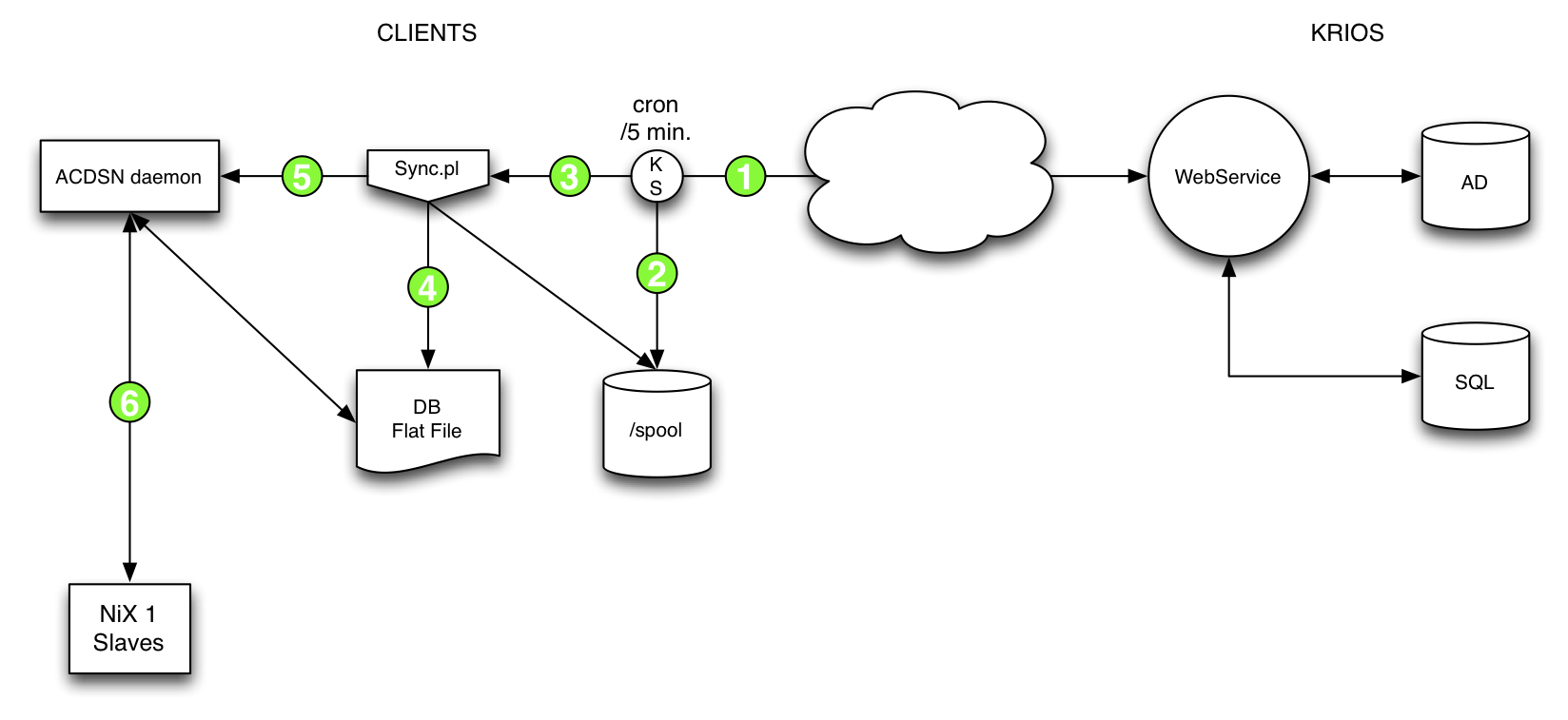

  1. KS script query the WebService
  2. KS updates spool directory with new files
  3. KS call sync.pl
  4. Sync.pl updates the DB Flat File
  5. Sync.pl reload ACDSN-AC Daemon
  6. ACDSN Daemon update NiX1 slaves

SOAP Procedure

GET

Procedure Returns
getKeys Returns the list of the keys formatted as a TSV file, like keys.txt
getUnits Returns the list of the units formatted as a TSV file, like units.txt
getUsers Returns the list of the users formatted as a TSV file, like users.txt
getRights Returns the list of the rights (cron) formatted as a TSV file, like cron.txt

PUSH

Procedure Parameter
pushKey Sends the last daily formatted as a TSV file (like keys.txt) to keep the AD up do date
pushUsers Sends the list of the users as a TSV file (like users.txt) to sync the AD with the user's key timestamp

SQL Tables

Keys

Field Name Description Example
timestamp The timestamp of the secret key's generation 1353324064
key The value of the secret key [Z}4V;qr$(/Kc_aiF7#K8tATNC

Units

Field Name Description Example
id The unique identifier of the Unit, as used in slaves.conf 42
label A label describing the Unit Office

Users

Field Name Description Example
id The id of the user, as used by the AD 45
timestamp The timestamp of the last key read for the User 1353324064
increment A value which can be incremented when the key is lost 3

Rights

Field Name Description Example
type The type of target this rule applies. It can be either 'U' for an User, or 'G' for a Group U or G
UID / GID The id of the User or of the Group, as used in the AD 45
unit_id The id of the Unit on which this rule applies 42
cron The times when the Unit is accessible for this rule As you wish (maybe like a cron: 0 8-17 * * *)
